Extruder Screw Elements Twin Screw Extruder Machine Spare Parts
We are working for years about the life enlarging of the replacement parts of twin Screw Extruder Now , we can produce high quality of Bimetallic screw parts and cylinders. it will have the following charactors:
1. Using process of PM-HIP bimetallic tool steels
2. WC alloy coating and grinding. enlarge the life about 2- 5 times then normal steel
3.producing based on customer requirement, OEM production.

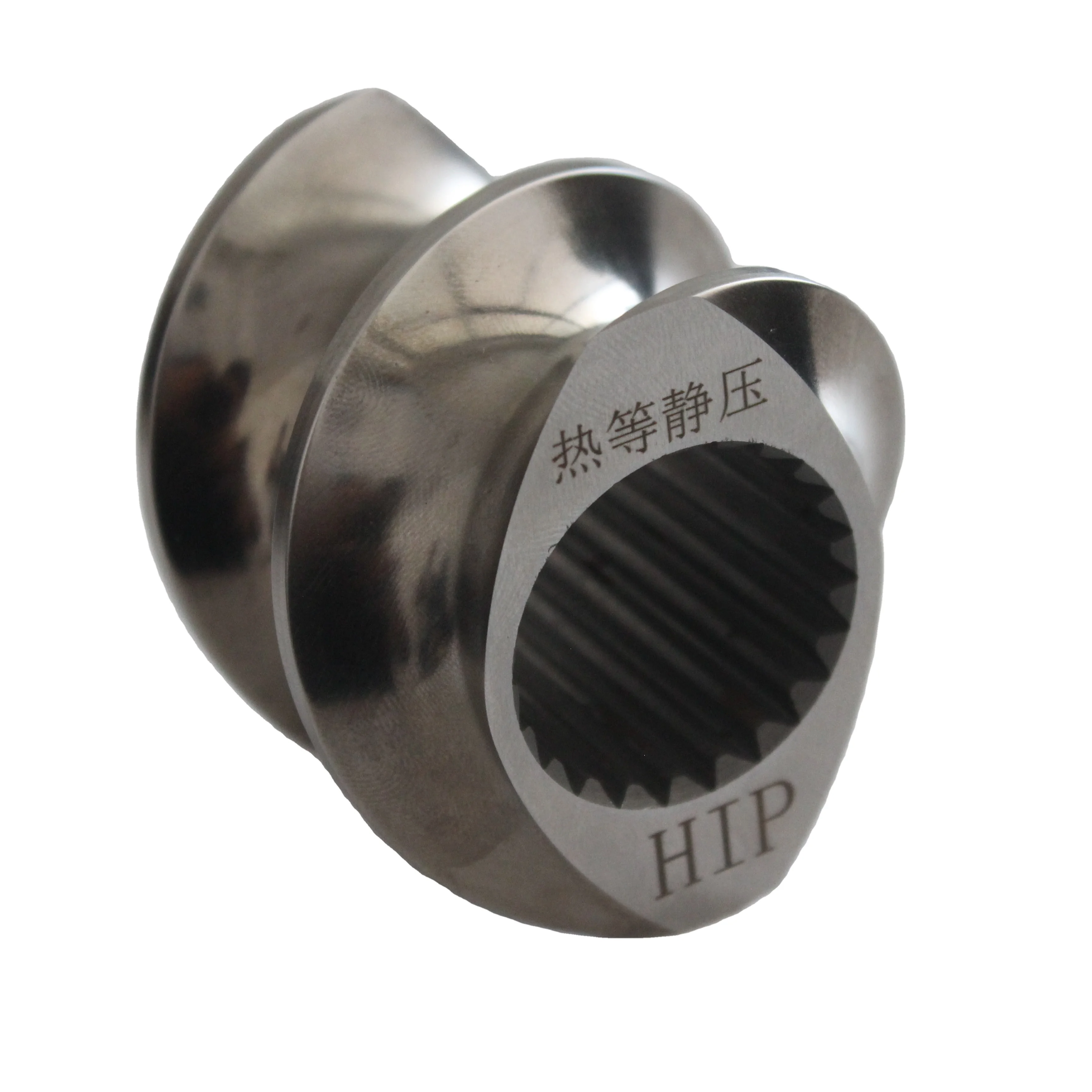

| Product Name | HIP Process Long Life Twin Screw Extruder Replacement Screw Elements |
| Place of Origin | Shanghai, China |
| Screw design | customized |
| Screw type | Parallel Double Screw |
| Application machine | Twin Screw Extruder |
We can make the twin screw elements for below brands :
APV KOBE OMC
Buhler Kraussmaffei Theyshohn
Buss Berstorff Toshiba
Clextral Labtech USEON
Coperion Lantai others
JSW Leistriz
Keys Maris

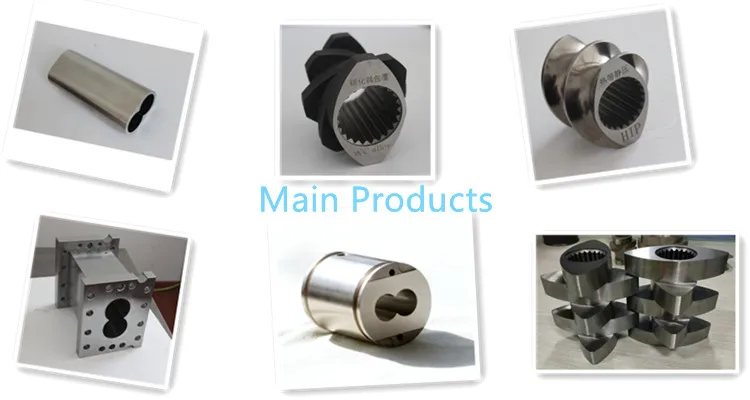

Screw Segments :
Convey Screw Segment
Mixing Screw Segment
Kneading Block and Disk
Transition Screw Elment
Deep Groove transfer element
Screw element for side feeder
1-flighted,2-flighted,3-flighted screw elements
We offer a broader choice of materials:
For wear application:
Tool Steel : W6Mo5Cr4V2;
PM-HIP material : SAM10,SAM26,SAM39,CPM10V,CPM9V
For corrision application:
Nitrided Steel: 38CrMoAI;
PM-HIP material : SAM26,SAM39,CPM10V,CPM9V
For wear and corrision application:
PM-HIP material:SAM26,SAM39,CPM10V,CPM9V
Other materials:
Stainless Steel: 316L,C276 etc.
By working closely with customers in choosing optional materials,we can minimize wear and tear and associated costs.
